Benz W204 Rear Led Lights Retrofit code with DAS

This instruction is about Benz W204 Rear Led Lights retrofit code with DAS.

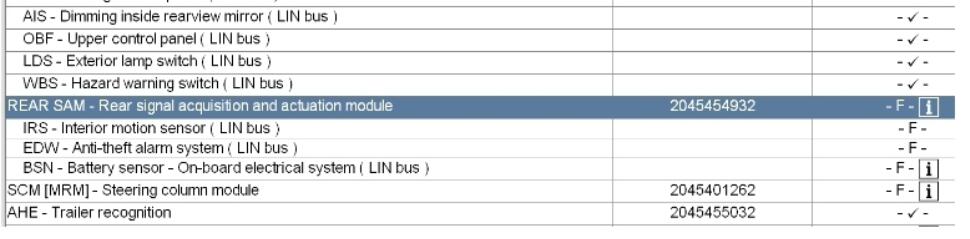

1Start DAS and do a quick test

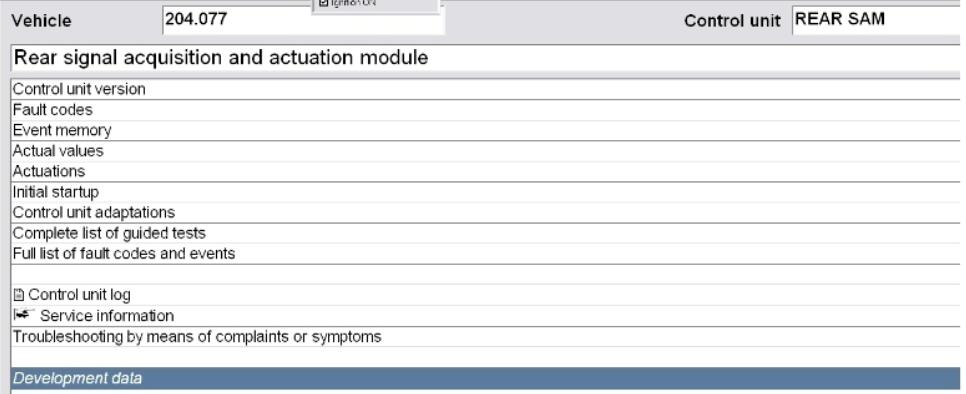

2Open rear sam and go to development data

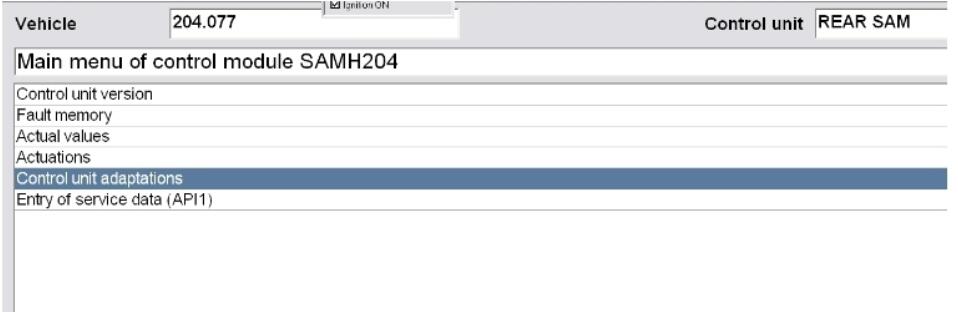

3Select control unit adaption

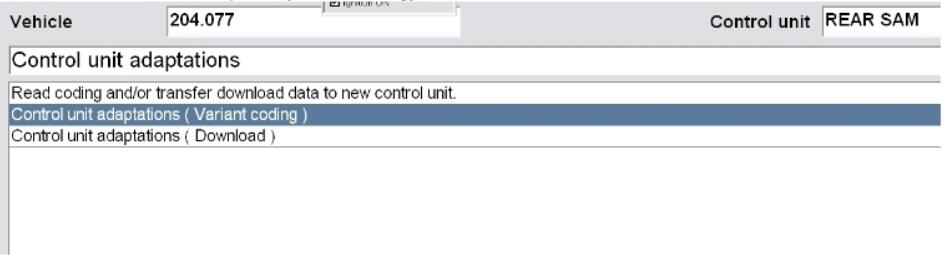

4Go to the Control unit adaptions(Variant Coding)

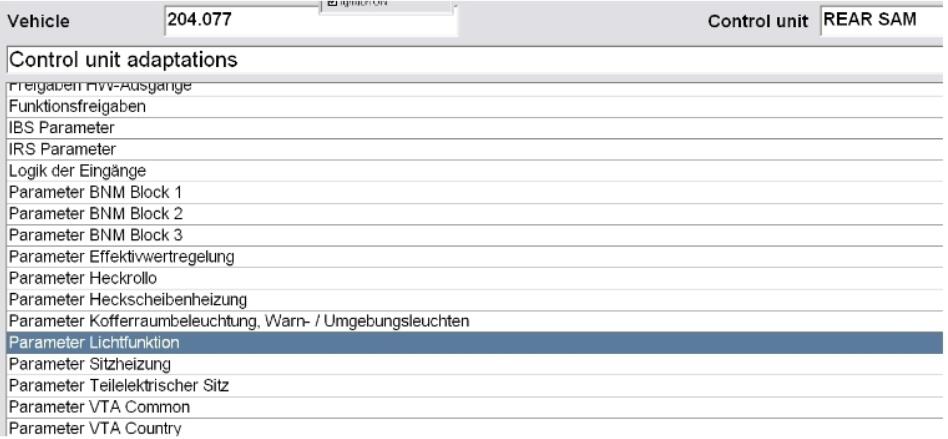

5Go to the Parameter Lichtfunction:

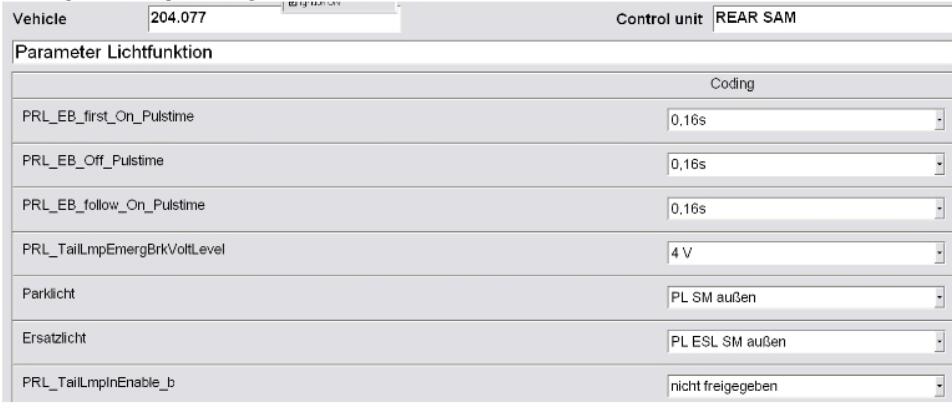

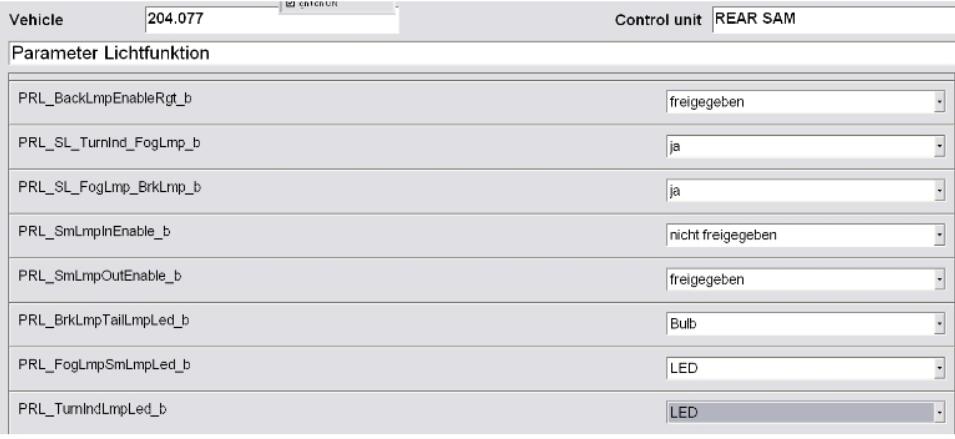

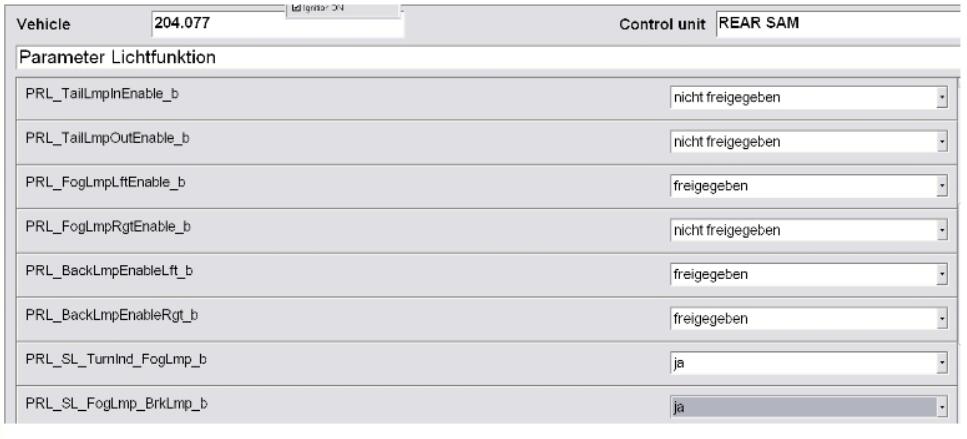

6Change the coding according to the below screenshots:

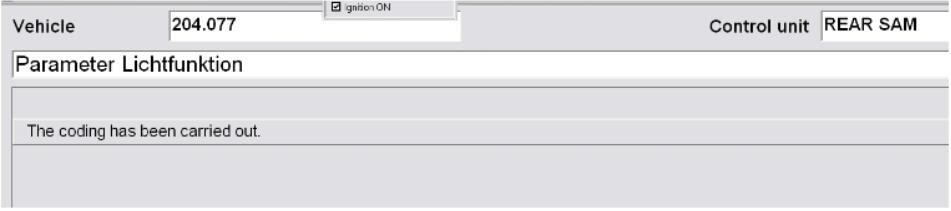

7Save the config

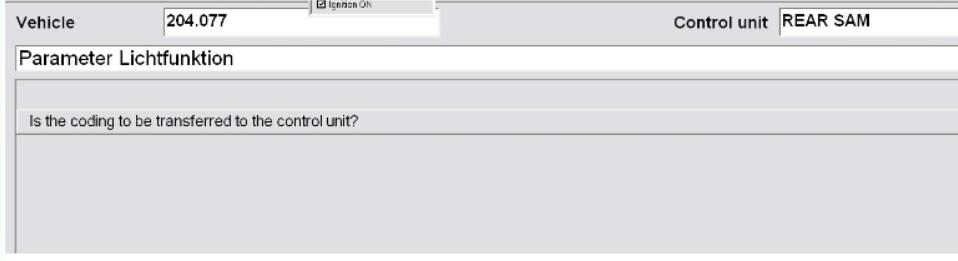

8Select yes

Now shut down DAS, shut down the car and lock it, now start the car again and everything should be working correctly.
